ADW2XX IoT Multi-Circuit Energy Meter
Update time:2021-01-12

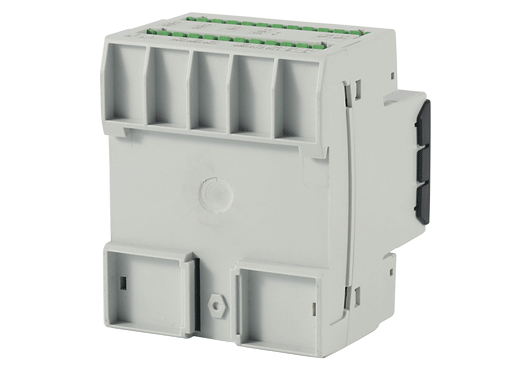

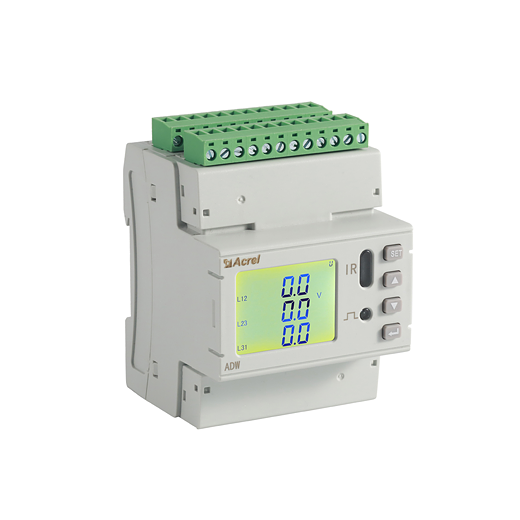

  • ADW2XX IoT Multi-Circuit Energy Meter
  • ADW2XX IoT Multi-Circuit Energy Meter
  • ADW2XX IoT Multi-Circuit Energy Meter
  • ADW2XX IoT Multi-Circuit Energy Meter
  • ADW2XX IoT Multi-Circuit Energy Meter
  • ADW2XX IoT Multi-Circuit Energy Meter
● Mearsure Up to 4 circuit 3 phase
● Mearsure all electric parameters
● Split core open loop CTs
● External function module, such as MK(switching inputs and outputs),
MTL(temperature measurement and leakage current measurement),
AWT100(wireless communication)
Contact us
Information
Certificate
General

ADW2XX series rail type multi-loop power meters are mainly used for measuring the full electric parameters of multiple three-phase circuits,Up to four three-phase loop current inputs can be connected simultaneously.It Can measure voltage and current, power, power factor, phase angle, unbalance, harmonic and other parameters.


Features

● Mearsure Up to 4 circuit 3 phase
● Mearsure all electric parameters
● Split core open loop CTs
● External function module, such as MK(switching inputs and outputs),

   MTL(temperature measurement and leakage current measurement),

   AWT100(wireless communication)


Naming Rule

Naming Rule.jpg


Function



AccuracyActive power: Class 1Reactive power: Class 2FrequencyRange: 50 - 60HzPulse outputActive pulse output and reactive pulse outputConsumption<0.5VA(Single phase)
Dimension (L*W*H)Panel size (L×W): 72*97.7*36 mmInstallation: Din 35mmWirelessDownlink RS485 , Upload Ethenet, 4G, LORA, LORAWAN , LORA, WifiStarting current: 4‰lb


Technical Parameters


Auxiliary powerAC/DC 85~265V; Consumption≤10VA;
 Input  Frequency45~65Hz;
VoltageAC 3×220V/380V; Overload: 1.2 times of rated value (continuous);2 times of rated value / 1s; Power consumption: ≤ 0.5VA;
CurrentAC 5A、100A、400A、600A;(External opening transformer); Power consumption: ≤ 0.5VA;Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s;
Measurement accuracyFrequency 0.05Hz, voltage、current Class 0.5; 2-31st harmonic accuracy: ± 1%;Active electric energy level 1, reactive electric energy level 2;
  FeaturesPulse outputOutput mode: optocoupler pulse with open collector;
CommunicationRS485、Modbus-RTU; Baud rate 1200~38400;
Switching InputDry contact input、Built in power supply;
Switching OutputOutput mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A;

Front Panel

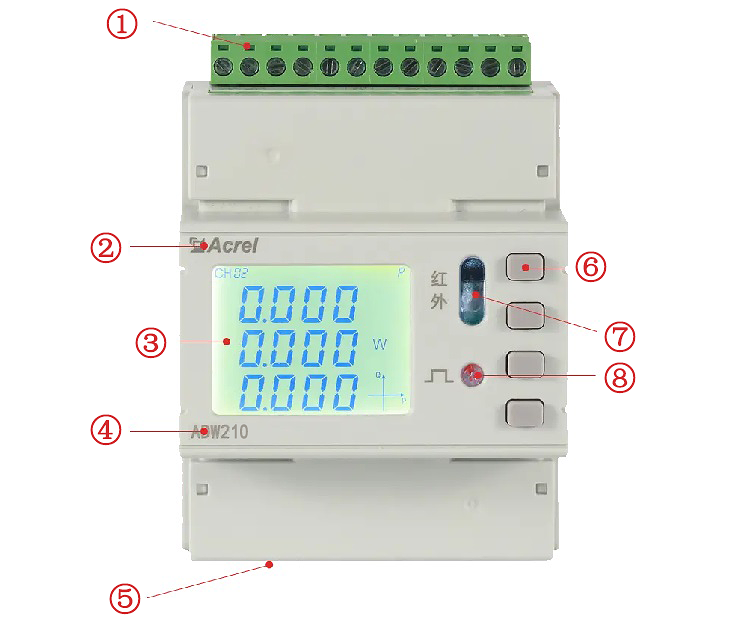

① U / Pulse / DO / DI / Communication / Auxiliary Power Supply② Brand③ Panel④ Model Number⑤ CH1, CH2, CH3, CH4 for current / extension module interface⑥ Button⑦ Infrared Status⑧ Pulse Output Light


Optional Module

External Module (MTL)12 External NTC Temp. Measurement4 Channels Residual Current MeasurementExternal Wireless Module(AWT100)Downlink RS485; Uplink 4G, 2G, NB, Lora, LoraWAN, Ethernet, WiFi, GPS, ProfibusExternal Module(MK)12 Channels DI + 4 Channels DO




ADW2XX Supporting CT

ADW2XX Meter Supporting CT.jpg


Dimension(Unit:mm)

ADW2XX series main part dimension


Modular Dimension

dimension module_副本.jpg

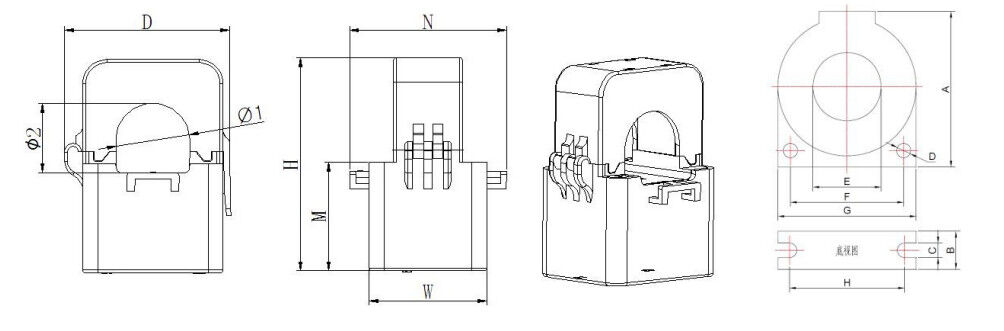

Supporting CT Dimension


Diemension CT_副本.jpg



Wiring




Installation


① Main Body of ADW2xx; ② External Module 1(MTL/MK);③ AWT100-*(NB/2G/4G/Lora/LW Communication)


Typical Connenction

Typical Connection.jpg

typical conneciton.jpg
